A worn-out car oil filter lets dirt, metal shavings, and sludge circulate through the engine. Over time this wears down bearings, pistons, and the crankshaft, and repair bills climb fast. A good car oil filter stops this before it starts. It traps contaminants, keeps oil clean, and protects every moving part the oil touches.
We manufacture car oil filters built for consistent flow rate, high filtration efficiency, and long service life. This guide covers what a car oil filter does, how it’s built, why quality matters, the filter types we produce, and how to pick the right car filter manufacturer for your fleet, workshop, or distribution business.

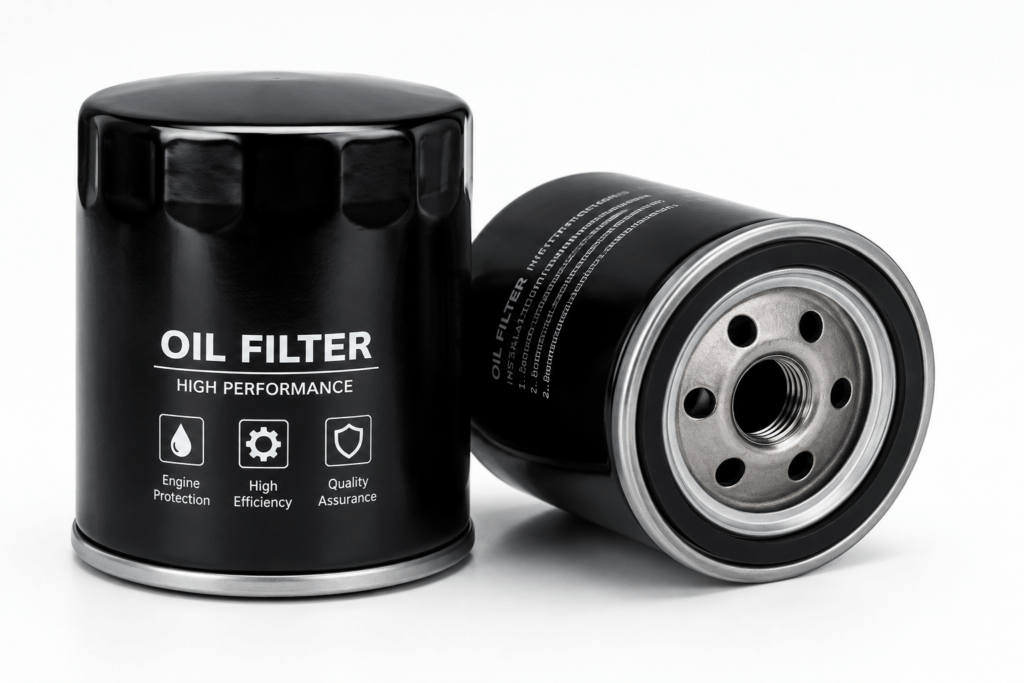

What Is a Car Oil Filter?
A car oil filter is a component in the lubrication system that removes contaminants from engine oil before it circulates back through the engine. Oil picks up metal particles, dust, carbon residue, and combustion byproducts as it moves through the engine. The filter catches these particles in a pleated media element, so the oil that reaches the bearings and cylinder walls stays clean.
Most filters use a spring-loaded bypass valve. If the filter media clogs, the valve opens and lets oil flow around it, so the engine never runs dry of lubrication. An anti-drain back valve keeps oil in the filter housing when the engine shuts off, so the next startup doesn’t run on dry bearings for a few seconds. A center steel tube, often called a standpipe, supports the pleated media from the inside and stops it from collapsing under oil pressure.
The filter housing itself is usually stamped steel, sealed at the base with a rubber gasket that presses against the engine block. That gasket does one job: stop oil from leaking out at the mounting point. A gasket that’s too thin, too hard, or made from low-grade rubber cracks under heat cycling and causes slow leaks within months.
How a Car Oil Filter Is Made
A filter starts with the media: sheets of cellulose, synthetic fiber, or a cellulose-synthetic blend. The sheet gets pleated to increase surface area, since more surface area means the filter holds more contaminant before it clogs and restricts flow. The pleated media is then glued into a circular shape and fitted around the center steel tube.
The housing is stamped from cold-rolled steel and coated to resist corrosion from engine bay heat and moisture. Workers or automated lines then crimp the housing closed around the media assembly, fit the bypass valve and anti-drain back valve, and seal the gasket in place. Each finished filter goes through pressure testing, and a sample from each batch goes through a filtration efficiency test using a controlled contaminant solution.
Manufacturers who skip steps here, such as using thinner steel for the housing or lower-grade rubber for the gasket, produce a filter that looks identical on the shelf but fails sooner in the field. This is the main reason two filters priced differently rarely perform the same.
Why a High-Quality Car Oil Filter Matters
Engine protection
Unfiltered contaminants act like sandpaper inside the engine. They scratch cylinder walls, wear down bearing surfaces, and shorten the life of the timing chain. A filter with a fine micron rating and a properly sealed gasket keeps these particles out of circulation. Cheap filters often use thin filter media that lets larger particles pass through after a few thousand kilometers, and the wear this causes doesn’t show up until the engine starts burning oil or knocking under load.
Fuel efficiency
Clean oil reduces friction between moving parts. Less friction means the engine needs less energy to turn over, which shows up as better fuel economy. A clogged or low-quality filter increases resistance in the oil flow path, and the engine works harder to keep parts lubricated. Over a full year of driving, the difference between a properly flowing filter and a restricted one can add up to a measurable drop in mileage, especially in stop-and-go city driving where the oil pump cycles constantly.
Cost savings over time
A car oil filter costs a small fraction of what an engine rebuild costs. Fleet operators who standardize on a reliable filter see fewer unplanned engine repairs and longer intervals between major service work. The upfront cost of a quality filter is small next to the cost of a damaged crankshaft or a scored cylinder wall, and fleet managers who track cost-per-kilometer usually find that filter quality has more effect on that number than filter price.
Consistent oil pressure
A filter with a bypass valve calibrated to the wrong pressure either opens too early, sending unfiltered oil into the engine before it needs to, or opens too late, starving parts of oil under high load. Getting this calibration right requires testing against the engine’s actual oil pump output, not a generic pressure figure.
Types of Car Oil Filters We Manufacture
Spin-on filters
Spin-on filters combine the filter media, housing, and gasket into one sealed unit. The mechanic removes the old filter and threads on the new one directly, without opening a separate housing. We manufacture spin-on filters in multiple thread sizes and heights to match OEM specifications across passenger cars, SUVs, and light commercial vehicles. Each unit goes through burst-pressure testing rated above standard operating pressure, so the housing holds up under real driving conditions, including cold starts where oil is thicker and pressure spikes higher for the first few seconds.
Cartridge filters
Cartridge filters sit inside a permanent housing on the engine block. Only the filter element gets replaced during service, not the housing. This design produces less waste per service interval and is common on newer European and Japanese engine platforms. We produce cartridge elements with pleated synthetic media rated for extended drain intervals, along with the O-rings and seals needed for a leak-free fit. Since the housing is reused, the O-ring quality on the replacement cartridge matters as much as the media itself. A poor-fitting O-ring is one of the most common causes of oil leaks after a cartridge filter service.
Filter media: cellulose vs synthetic vs blended
Cellulose media is the traditional choice, made from treated paper fiber. It’s cost-effective and works well for standard drain intervals of 5,000 to 7,500 kilometers. Synthetic media, made from glass or polyester fiber, holds finer particles and handles higher temperatures without breaking down, which makes it better suited to extended drain intervals of 10,000 kilometers or more. Blended media combines both materials to balance cost and performance. We manufacture all three, and we help distributors match media type to their customers’ typical drain interval and driving conditions.
Car Oil Filter vs Car Filter: Understanding the Difference
“Car filter” is a broader term that covers several components: the oil filter, air filter, cabin air filter, and fuel filter. Each one filters a different fluid or airflow in the vehicle.
The car oil filter cleans engine oil. The air filter cleans intake air before it reaches the combustion chamber, catching dust and debris that would otherwise wear down cylinder walls and piston rings. The cabin filter cleans air entering the passenger compartment through the HVAC system, trapping pollen, dust, and exhaust particulates. The fuel filter removes contaminants from fuel before it reaches the injectors, protecting the small, precise nozzles from clogging.
As a car filter manufacturer, we produce all four categories, which lets workshops and distributors source a full filtration lineup from one supplier instead of coordinating with multiple vendors, tracking multiple lead times, and reconciling multiple invoices.
Signs Your Car Oil Filter Needs Replacement
- The oil pressure warning light turns on, which can mean the filter is clogged and the bypass valve has opened
- Oil looks dark and gritty on the dipstick well before the scheduled change interval
- The engine sounds louder or rougher at idle, a sign that oil isn’t reaching parts fast enough
- Exhaust smoke appears darker than normal
- The engine takes longer than usual to build oil pressure after a cold start
- You notice a burning oil smell, which can mean oil is leaking onto a hot exhaust component near a cracked gasket
- The vehicle has passed the manufacturer’s recommended mileage or time interval since the last filter change, typically 5,000 to 10,000 kilometers depending on the oil type
Most manufacturers recommend replacing the oil filter at every oil change, since a filter left in place for two service intervals loses much of its filtration capacity and can restrict flow enough to trigger the bypass valve permanently.
Common Mistakes When Buying Car Oil Filters
Buying on price alone. A filter priced 30% below the category average usually cuts cost somewhere: thinner steel, lower-grade rubber, or a coarser media weave. The savings on the filter often show up later as an engine repair bill.
Ignoring the bypass valve rating. Two filters can look identical from the outside and open their bypass valve at different pressures. Installing a filter with the wrong rating for a given engine can either starve it of oil under load or let unfiltered oil through too easily.
Skipping the fitment check. Thread size, gasket diameter, and housing height all need to match the vehicle. A filter that’s close but not exact can leak, vibrate loose, or fail to seat against the mounting surface correctly.
Overlooking the anti-drain back valve. Without a functioning anti-drain back valve, oil drains out of the filter every time the engine shuts off. This means every startup runs for a few seconds with reduced oil pressure at the top of the engine, which adds up to measurable wear over thousands of startups.
How to Choose the Best Car Oil Filter Manufacturer
Not every filter on the market meets the same standard. Here’s what to check before you commit to a supplier.
Certifications. Look for ISO 9001 for quality management and IATF 16949 for automotive parts manufacturing. These certifications mean the manufacturer follows documented processes for material sourcing, production, and testing, and that those processes get audited on a regular schedule.
Filtration media quality. Ask what micron rating the filter achieves and whether the media is cellulose, synthetic, or a blend. Synthetic media generally holds more contaminants before clogging and handles higher temperatures.
Testing process. A serious manufacturer tests burst pressure, anti-drain back valve function, and filtration efficiency on every production batch, not just on prototype samples. Ask whether test data is available on request, since a manufacturer confident in its product usually shares this without hesitation.
OEM fitment data. Check that the manufacturer maintains an accurate cross-reference database, so the filter you order actually matches your vehicle’s thread size, gasket diameter, and bypass valve pressure rating.
Export experience. If you’re sourcing in bulk or for resale, a manufacturer with export documentation experience and consistent container-load capacity reduces delays at customs and in your supply chain.
Packaging and labeling options. Distributors reselling under their own brand need a manufacturer that supports private labeling, custom box printing, and barcode assignment without adding months to the order timeline.
Why Choose
We have manufactured car oil filters, air filters, cabin filters, and fuel filters for over 10+ years, supplying workshops, distributors, and fleet operators across [Delhi]. Our production facility runs ISO 9001 certified quality processes, and every batch goes through burst-pressure and filtration-efficiency testing before it ships.
We maintain OEM cross-reference data for major passenger vehicle and commercial vehicle brands, so distributors can match the right filter to the right application without guesswork. We also support private labeling and custom packaging for distributors who want to sell under their own brand name, including custom box printing, barcode assignment, and multi-language packaging for export markets.
FAQs
How often should I change my car oil filter?
Change the oil filter at every oil change, usually every 5,000 to 10,000 kilometers depending on your vehicle and oil type. Check your owner’s manual for the exact interval.
Can I reuse an oil filter?
No. Oil filters are single-use parts. The filter media traps contaminants permanently, and reusing it puts dirty oil back into circulation.
What happens if I don’t change my oil filter?
The filter clogs over time, the bypass valve opens, and unfiltered oil circulates through the engine. This accelerates wear on bearings, cylinder walls, and other moving parts.
Are spin-on filters better than cartridge filters?
Neither type is better on its own. Your vehicle’s engine design determines which type it uses. Spin-on filters are common on older and simpler engine layouts, while cartridge filters appear more often on newer platforms designed to reduce waste.
What’s the difference between cellulose and synthetic filter media?
Cellulose media costs less and works well for standard drain intervals. Synthetic media holds finer particles, handles higher heat, and lasts longer, which suits extended drain intervals.
Do you supply oil filters in bulk for distributors?
Yes. We supply bulk orders for distributors, workshops, and fleet operators, with private labeling and custom packaging available on request.
Can a wrong-fit oil filter damage my engine?
Yes. A filter with the wrong thread size, gasket diameter, or bypass valve rating can leak, restrict oil flow, or fail to protect the engine the way a correctly matched filter would.
Get in Touch
A car oil filter is a small part with a direct effect on engine life. If you’re sourcing filters for a workshop, fleet, or distribution business, browse our car oil filter range or contact us directly for bulk order pricing, technical specifications, and OEM cross-reference support.
